ANODISING/ C SHAPED PLANT

The bar flows always in the same direction not hindering the flow of the batches gaining productivity between 20 – 30 % more than a traditional line. Moreover the closeness between loading and unloading stations allows a more elastic managing of man power.

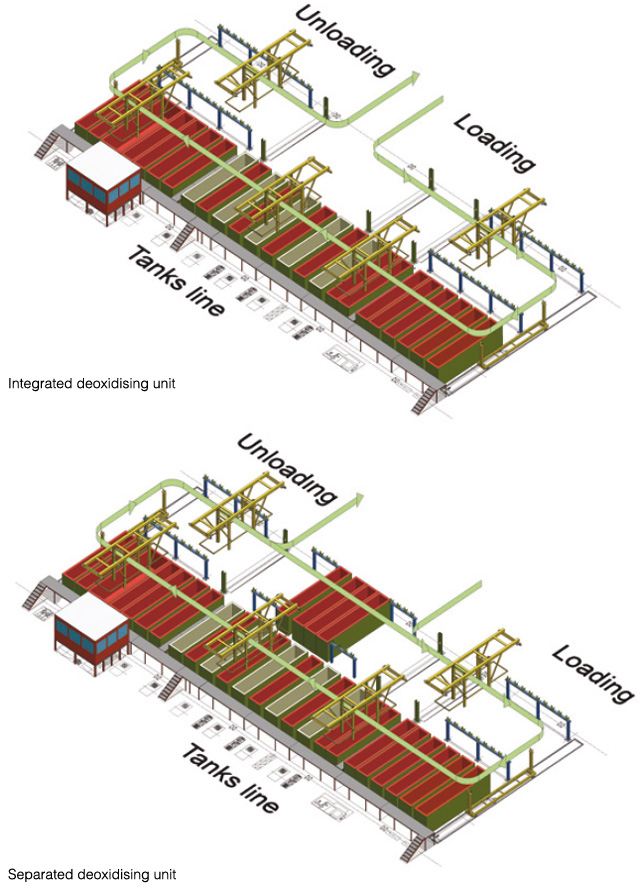

Below we can see the production flow in two different versions of a C plant.

Video

Tanks	Rectifiers	Fume treatment
Pneumatic clamp	Tranformers	Acid recovery System
Gas burners	Acid cooling skid	Deionising water
Blowers	Electrocolouring cooling skid	Caustic recovery system
Cranes	Chiller	Flight bar
Loading and unloading stations	Cold water buffer	Electrochemical brightening
